Overview

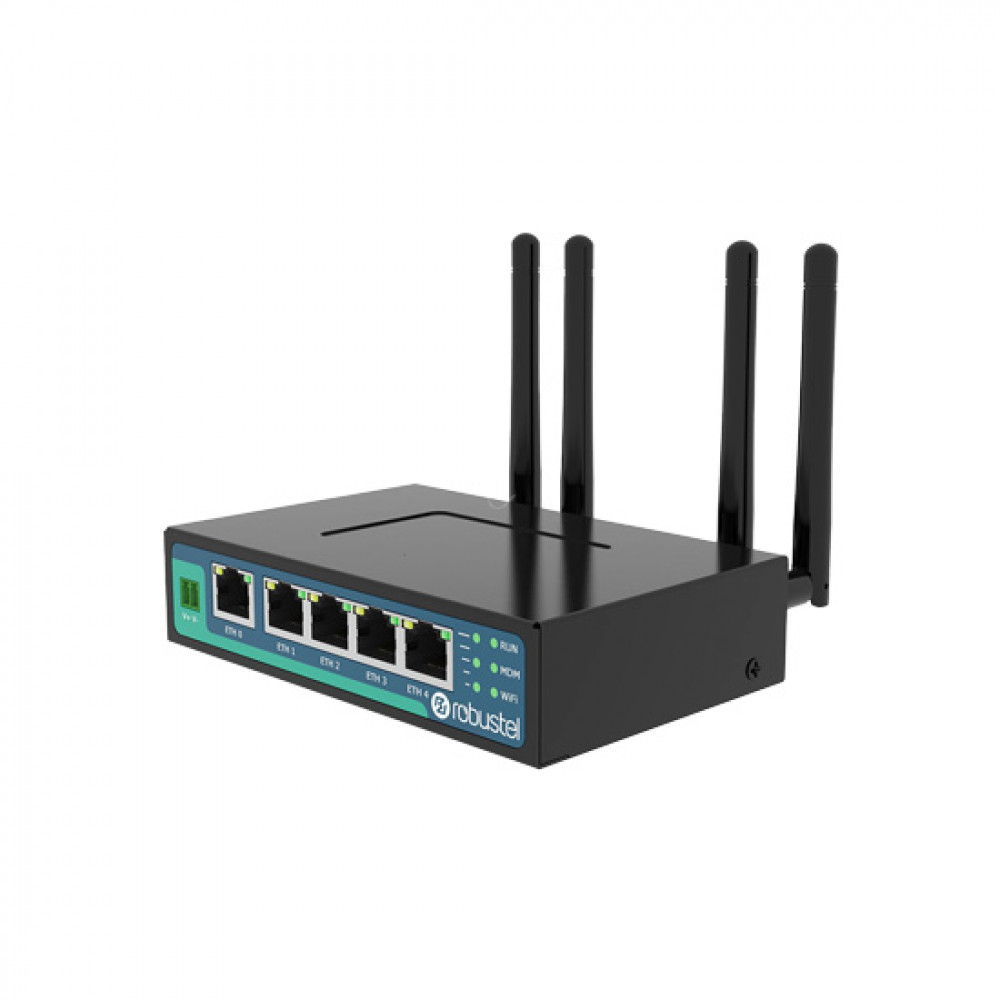

The Robustel R2011-A-4L Versatile IoT Router is a rugged, versatile 4G router with 5 Ethernet ports, dual SIM single standby capability, and a range of advanced functions for mission-critical IoT or M2M applications.
The R2011 runs on Robustel’s own Linux-based Operating System, RobustOS. Developed entirely in-house, this gives way to a very high standard of technical support and high reliability. Robustel offers a Software Development Kit (SDK) to allow additional customization by using C, and C++. It also provides rich Apps to meet fragmented IoT market demands such as:
RobustVPN: Highly flexible hosted VPN service so customers can easily enjoy a “fixed IP router”
Data-Guard: Invaluable failsafe in case of a system failure and runaway data usage Smart
Reboot: SMS tool to push roaming SIMs from a non-working to a working state
Smart Roaming: Provides you with device-assisted intelligent network selection for roaming SIMs to improve performance and reduce risk.
RCMS: is Robustel’s free router monitoring service that is fully compatible with the R2011. It allows the customer to see a location overview of their routers quickly and simply on a map. Features such as data usage, signal strength, current network, and much more can then be viewed on a per-router basis.
Over-the-air updates are supported for Firmware, router configuration, and Apps serving as essential ‘insurance’ if anything is not quite right during deployment.
Features
- Country/Region: EMEA
- CE, UKCA Certifications
- Dual-SIM redundancy for continuous cellular network connections
- Link Manager supports Cellular WAN, Ethernet WAN, WLAN WAN link backup, and ICMP detection
- WAN – Static/DHCP Client
- RobustOS + SDK + Apps
- IPsec/OpenVPN/GRE/Wireguard VPN capabilities
- Management and maintenance via Web/RCMS Cloud
- Auto reboot via SMS/time schedule
- Robust industrial design (9 to 36 V DC, desktop or wall mounting, or DIN rail mounting)
Specifications
Cellular Interface | |
| Number of antennas | 2 (MAIN + AUX) |
| Connector | SMA-K |
| SIM | 2 x Mini SIM (2FF) |
Ethernet Interface | |
| Number of ports | 5 x 10/100 Mbps, 5 x LAN or 4 x LAN + 1 x WAN |
| WAN port | Supports 802.3at PD feature (optional) |
| Magnet isolation protection | 1.5 KV |
Wi–Fi Interface | |
| Number of antennas | 2 (Wi-Fi1 + Wi-Fi2) |
| Connector | RP-SMA-K |
| Standards | 802.11 b/g/n, supporting AP and Client modes |
| Frequency bands | 2.4 GHz |
| Security | WEP, WPA, WPA2, WPA3 |
| Encryption | 64/128 AES, TKIP |
Others | |
| Reset button | 1 x RST |
| LED indicators | 1 x RUN, 1 x MDM, 1 x Wi-Fi, 3 x RSSI |
| Watchdog | Built-in |
Software (Basic features of RobustOS) | |
| Network protocols | PPPoE, TCP, UDP, DHCP, NAT, DNS, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc. |
| VPN tunnel | IPsec, OpenVPN, GRE, WireGuard |
| Firewall | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote management | Web, CLI, SMS |
| Others | Smart Roaming v2, etc. |
SDK | |
| Supported programming language | C, C++ |
| Flash available for SDK | 16 MB |
| RAM available for SDK | 64 MB |
App Center (Available Apps for RobustOS) | |
| Apps* | L2TP, PPTP, DMVPN , VRRP, QoS, Captive Portal, WLAN Multi AP, SNMP, Language, RCMS |
| *Request on demand. For more Apps please visit www.robustel.com. | |
Power Supply and Consumption | |
| Connector | 2-pin 3.5 mm female |
| Input voltage | 9 ~ 36 V DC |
| POE-PD voltage | 40 ~ 57 V DC |
| Power consumption | Idle: 70 mA@12 V |
| Data link: 660 mA (peak)@12 V | |
Physical Characteristics | |
| Ingress protection | IP30 |
| Housing & Weight | Metal, 350g |
| Dimensions | 127 x 82 x 30 mm |
| Installations | Desktop, wall mounting and 35 mm DIN rail mounting |
| Operating temperature | -35 ~ +75°C |
| Storage temperature | -40 ~ +85°C |
| Relative humidity | 5% ~ 95% RH |
Regulatory and Type Approvals | |
| Environmental | ROHS 2.0 |
| EMI | EN 55032 Conducted Emission Class B EN 55032 Radiated Emission Class B |
| EMS | EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Level 2 EN 61000-4-5 (Surge) Level 2 EN 61000-4-6 (CS) Level 2 EN 61000-4-11 (DIP) |
